Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery

Name: Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
Brand: zzlysun
Price: 0.50 USD

Quality Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery for sale

Place of Origin : Guangdong, China

Brand Name : zzlysun

Model Number : 10kw hybrid solar

Packaging Details : Plywood Case

Supply Ability : 10 Carton/Cartons per Day

MOQ : 8000 watts

Price : $0.50/watts 8000-15999 watts

Warranty : 5years

Free installation service : NO

Application : Home

Solar Panel Type : Monocrystalline Silicon

Battery Type : Lead-Acid, Lithium Ion

Controller Type : MPPT

Mounting Type : Ground Mounting

Load Power (W) : 8KW, 6KW, 20KW, 5KW, 10KW

Output Voltage (V) : 230V

Output Frequency : 50Hz/60Hz

Work Time (h) : 12

Certificate : TUV/ISO/IEC/BIS

Pre-sales project design : Y

Rated power : 10kw

Solar panel : Mono Crystalline

Battery Voltage Range (V) : 40~60V

Charging Strategy for Li-Ion Battery : Self-adaption to BMS

Max PV Power : 15kw

MPPT Range (V) : 125V-425V

No.of MPPT Trackers : 2

PV Input Current (A) : 22A+22A

Switch Time : 10ms(Typical)

Max.MPPT Charging Current : 200A

Port : Shanghai/Ningbo/Qingdao/Guangzhou

Contact Now

Hot selling original lithium ion batteries solar energy storage system 10 kw hybrid lead acid solar gel battery

Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery

❖ General mode:

A photovoltaic energy storage system serves as the energy conversion and control center for the entire household photovoltaic system. Its primary function is to convert unstable photovoltaic power into stable AC power for household loads, and to store excess energy in energy storage batteries. Users can set various operating modes according to their needs and choose the priority of electricity use to maximize electricity utilization. Additionally, the system can be monitored through a mobile app to check the operational status of the equipment

Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery

❖ Solar Panel

Solar modules convert light energy into DC electrical energy by means of the photovoltaic effect. And it’s the energy source of entire system

❖ Utility Grid(AC Input)

The mains electricity or generator can be used as an energy supplement to the PV system,charging the batteries or supplying the load when there is a lack of solar energy, and some models support the feeding of excess power back into the grid.

❖ Battery

Batteries are used to store energy,for example to store photovoltaic energy generated during the day for use at night, or to provide emergency power for households in the event of a mains power failure.

❖ Home Load(AC Output)

For electrical equipment throughout the home, please select the appropriate model according to the power used.

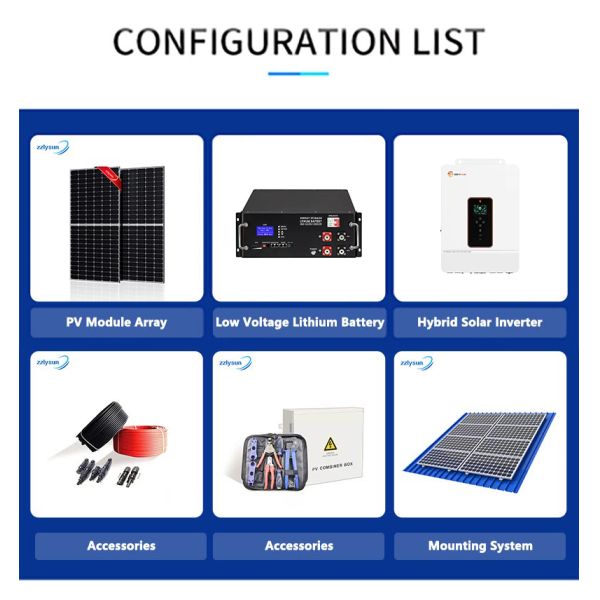

Type	single phase 120V/Split Phase 220V &Single Phase 230V
Model	8KW hybrid solar system	10kw hybrid solar system
PV module	455W solar*18PCS	455W solar*22PCS
PV combiner box	2 Input 2 output	2 Input 2 output
Inverter	8kw hybrid inverter	10kw hybrid inverter
Monitor	Wifi Module	Wifi Module
Battery	Lithium Battery or Lead Aid Battery	Lithium Battery or Lead Aid Battery
Mounting System	Roof mounting/Ground mounting (Design by your requirement)
Accessories	MC4 Connector,PV cable,Installations

❖ Solar Panel

1.Power:445~470W

2.The quantity of Cell:144PCS
3.Solar cells size:166*83mm
4.Dimensions:2094x1038x35mm(LxWx H)
5.Open Circuit Voltage-Voc[V]:49.56V
6.Short Circuit Current-lsc[A]:11.32A
7.Max Power Voltage-Vmp[V]:41.21V
8.Max Power Current-lmp[A]:10.08A
9.Module Efficiency:20.47%

❖ Hybrid Solar Inverter

1. Rate Power: 8000W/10000W
2.Battery Voltage:40~60V
3.Battery Type:Lithium Battery/Lead Aid
4. MPP voltage range:125~425V
5. AC Voltage Regulation:230V

6. AC grid frequency:50Hz/60Hz
7. Max PV Power:12KW/15KW
8. Max. Efficiency :99%
9. AC grid connection type:3W+N+PE
10. Peak Power (off grid):<10S
11.No. of MPP trackers:2pcs
12.Max. input current per MPP tracker:

22A+22A

❖ Lithium Battery

1. Nominal Voltage:51.2V

2. Capacity:200Ah
3. Energy:10240Wh
4. Cycle Life:
≥5000 cycles @ 80% DOD, 25℃, 0.5C
≥4000 cycles @ 80% DOD, 40℃, 0.5C
5. Design Life:≥10 years
6. Charge Cut-off Voltage:56.0V±0.5V
7. Dimensions:680 x485 x180(220)mm
8. Weight:Approx:98kg

❖ Accessories

1. PV Combiner Box
(Anti-reverse/SPD/Fuse/Busbar/Breaker 63A1000V)

2. Installation tolls
Wire Crimper, Stripper, MC4 Connector Wrench

❖ Accessories

1. PV DC Cable
4mm2 or 6mm2

2. MC4 Connector
Rated current: 30A Rated voltage: 1000VDC

❖ Mounting Bracket

1. Good Appearance
2.Easy and flexible installation.

3.Diversified design
4.Light dead-weight
5.Save installation materials

❖ Project Case

❖ Company

The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!

❖ Quality gurantee

The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.

❖ Plywood Package

The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!

❖ Certificate

1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.

2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.

FAQ

1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us freely.

5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your deposit of payment.
